Manufacturers of PTFE/Teflon Hoses with Pipe Nipples, Bend, or Elbows

//PTFE Hose with Nipple or Pipe End, 90 Degree Bend, Elbow

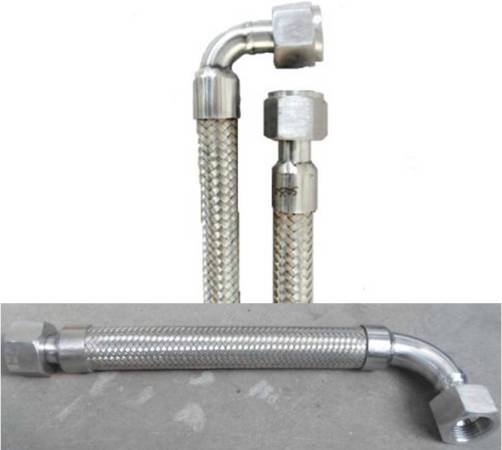

PTFE Hose with Nipple or Pipe End, 90 Degree Bend, Elbow

4,600.00

Buy High Quality PTFE Hoses with Pipe Nipples, Pipe Ends or Bends at Best Prices!

  • Construction of SS Braided PTFE (Teflon) Hose Pipes with Pipe Nipples – Innercore of corrugated or smooth PTFE, externally reinforced with stainless steel wire braid (Single or Double).
  • Temperature: Constant use range from -50° C ~ +210° C, Instant use: -70° C ~ +260° C
  • Chemically Resistant (all common solvents, acids and bases) & Also Food Grade Quality
  • End Connection: Pipe Nipples, Threaded Nipples, Pipe Bends, Elbows, 90 Degree Bends
  • Pressure Test & Material Test Reports Available with Materials

We are a specialist manufacturer of SS 304 Braided Flexible Teflon or PTFE Metal Hose Pipe with Pipe Nipples and Elbows as end connections. Since our inception, Metline has been a renowned name in manufacturing PTFE Hoses with Pipe Nipples or Bends, also widely known as Teflon Hoses, for  the most demanding applications. Our stainless steel braided PTFE hose with Pipe Nipples or Bends are used by customers in dairy, food processing, chemical and pharmaceutical industries.

Stainless Steel braided PTFE or Teflon hose pipes with Pipe Nipples end connections are the general purpose product, and can be used in applications involving high temperatures and working pressures. Outside braiding of AISI 304 stainless steel wire is used, to give maximum pressure resistance and external protection to the hose assembly.

Metline is a manufacturer dedicated to the design, production, and distribution of all types of flexible hoses with threaded fittings, adapters, quick release couplings and camlock couplings with excellent quality standard.

Description

Metline is a manufacturer and professional supplier of PTFE (Teflon) Hose with Nipple or Pipe End, 90 Degree Bend, Elbow as End Connections. We can offer PTFE hose with Nipple or Pipe End, 90 Degree Bend, Elbow in a variety of configurations such as Smooth Bore or Convoluted Type, with stainless steel 304 or stainless steel 316 wire braiding. SS Braided Teflon Hose Pipes are widely suitable for regular operation between -70℃- to 200℃, as they exhibit high resistance to strong acid and alkali.

We can offer the following categories of high quality teflon hoses with Unions at the most competitive prices in the industry:

  • Smooth Bore PTFE Hose with Nipple or Pipe End, 90 Degree Bend, Elbow – Available in Sizes upto 1″
  • Convoluted PTFE Hose with Nipple or Pipe End, 90 Degree Bend, Elbow – Available in Sizes upto 8″.
  • PTFE Lined Hoses with Nipple or Pipe End, 90 Degree Bend, Elbow – Available in Sizes upto 8″

Key Features of PTFE Hoses with Nipple or Pipe End, 90 Degree Bend, Elbow

  • Plain Nipple – AISI pipe as per Sch 10, Sch 40 pipe dimensions
  • Threaded Nipple – BSP, BSPT, NPT Threading Standards, with Sch 40 Pipe Standard
  • Plain or Threaded hose Nipple can be made custom length
  • Stainless Steel 304, Stainless Steel 316, Brass, Copper, Mild Steel, Carbon Steel, Galvanized

Pressure Rating for Smooth Bore PTFE Hose Pipes, with Stainless Steel 304/316 Wire Braid and Pipe End, Pipe Nipples or Bends

  • Stainless Steel PTFE Hose SAE 100 R14
  • Temperature : -54Deg. C to + 260 Deg. C
Hose I.D. Hose O.D. Working Pressure Min. Burst Pressure Min. Bend Radius
(Inch) (MM) (Inch) (MM) (PSI) (BAR) (PSI) (BAR) (MM) (Inch)
¼” 6.4 0.35 8.8 2610 180 10440 720 75 3
5/16” 8 0.43 11 2540 175 10160 700 100 4
3/8” 9.5 0.48 12.1 2390 165 9560 660 125 5
½” 12.7 0.64 16.2 1740 120 6960 480 165 6.6
5/8” 16 0.74 18.8 1270 88 5080 352 200 8
¾” 19 0.91 23.1 1010 70 4040 280 230 9.2
1” 25.4 1.15 29.2 870 60 3480 240 300 12

Pressure Rating for Corrugated or Convoluted PTFE Hose Pipes, with Stainless Steel 304/316 Wire Braid and Pipe Nipples, Bends or Pipe Ends

HOSE SIZE External Dia MAX. Working Pressure Minimum Burst Pressure Minimum Bend Radius
I.D. MAX. MM @ 20°C KG/CM2 (BAR) @ 20°C KG/CM2 (BAR) RADIUS MM
Inch mm
1/4 6 13.46 140 550 18
3/8 10 16 120 480 20
1/2 13 19 110 420 25
5/8 16 23 80 310 50
3/4 20 27.5 69 256 65
1 25 34.5 64 240 89
1.1/4 32 39.4 60 212 150
1.1/2 38 45.9 53 190 200
2 50 59.4 37 140 250
2.1/2 63.5 78 24 96 300
3 76.2 93.4 17 69 375
4 101.5 123.2 10 41 600
