//Stainless Steel Braided Teflon/PTFE Hose Pipe

Stainless Steel Braided Teflon/PTFE Hose Pipe

3,500.00

  • Construction of SS Braided PTFE/Teflon Hose Pipes – Innercore of corrugated or smooth PTFE, externally reinforced with stainless steel wire braid.
  • Temperature: Constant use range from -50° C ~ +210° C, Instant use: -70° C ~ +260° C
  • Chemically Resistant (all common solvents, acids and bases)
  • End Connection: Can Be Manufactured As Per Customer’s Specification with PTFE LINED
  • Application: Chemical Transfer, Steel Processing, Paint Spraying, Fuel and Lubricant Handling, Hydraulic Systems, Plastic Molding Machines, Food Processing, Marine & Transportation Industries

Since our inception, Metline has been a renowned name in manufacturing PTFE Hoses, also widely known as Teflon hoses, for  the most demanding applications. Our stainless steel braided PTFE hose assemblies are used by customers in chemical, oil and gas, food processing, and pharmaceutical industries.

Stainless Steel braided PTFE or Teflon hose pipes are the general purpose product, and can be used in applications involving high temperatures and working pressures. Outside braiding of AISI 304 stainless steel wire is used, to give maximum pressure resistance and external protection to the hose assembly. Among all types of flexible metal hose assemblies, we specialise in the manufacture and supply of:

  • PTFE Smooth or Corrugated Hose with Stainless Steel Braid and Quick Release Coupling

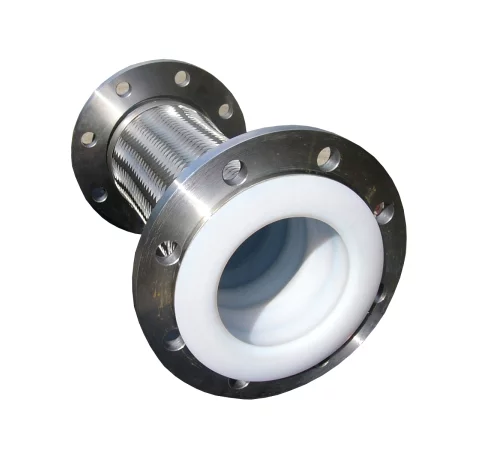

  • SS 304 Braided Flexible Teflon or PTFE Metal Hose Pipe with Flange ends
  • SS 304 Braided Flexible Teflon Hose Pipe with Threaded Fittings, Union Fittings, Pipe Ends or Nipples
  • SS Wire Braided Teflon Hose with Camlock Couplings or Tri Clover Fittings

Description

Metline offers PTFE hose in a variety of configurations such as smooth bore Innercore or Convoluted, with stainless steel 304 or stainless steel 316 wire braiding and suitable end connections. An ISO 9001:2015 Certified Company Metline provides quality Teflon Hoses or PTFE hose assemblies with stainless steel fittings, manufactured in-house. SS Braided Teflon Hose Pipes are widely suitable for regular operation between -70℃- to 200℃, as they exhibit high resistance to strong acid and alkali.

PTFE Teflon Hose (Polyethylene Hose Pipe) is made of polyethylene resin through special extrusion and ring process. Large size Teflon Hoses may also be manufactured by Die Pressing. This product is highly electrical insulating, highly flame retardant, self-lubricating and highly resistant to super high temperature, chemical reagents and almost all oil and other chemicals. We can offer the following categories of high quality teflon hoses at the most competitive prices in the industry:

  • Smooth Bore PTFE Hose – Available in Sizes upto 1″
  • Convoluted PTFE Hose – Available in Sizes upto 8″. Higher Sizes can be made available on request
  • Stainless Steel Braided PTFE Hose (Smooth or Convoluted) with Crimped Fittings & Various End Connections

Pressure Rating for PTFE Hose Pipes – Type PTFE Convoluted Inner Core with AISI 304 Stainless steel Wire Braid Reinforcement

HOSE SIZE External Dia MAX. Working Pressure Minimum Burst Pressure Minimum Bend Radius
I.D. MAX. MM @ 20°C KG/CM2 @ 20°C KG/CM2 RADIUS MM
Inch mm
1/4 6 13.46 140 550 18
3/8 10 16 120 480 20
1/2 13 19 110 420 25
5/8 16 23 80 310 50
3/4 20 27.5 69 256 65
1 25 34.5 64 240 89
1.1/4 32 39.4 60 212 150
1.1/2 38 45.9 53 190 200
2 50 59.4 37 140 250
2.1/2 63.5 78 24 96 300
3 76.2 93.4 17 69 375
4 101.5 123.2 10 41 600
