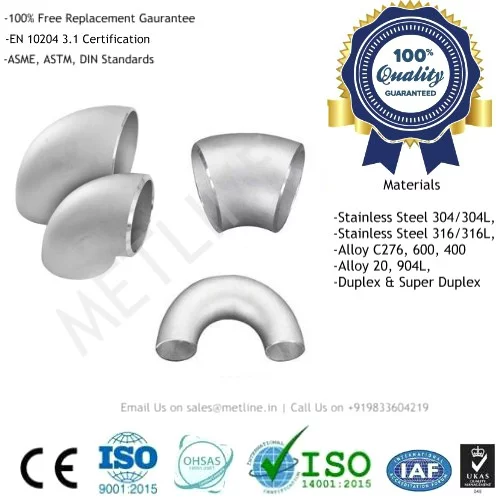

SS 304 Elbow, Seamless, Welded Elbow

265.00

SS 304/304L Elbow Manufacturers & Suppliers – Buy SS 304 Seamless/Welded Elbow

Leading Manufacturers & Suppliers of SS 304 Elbows in India, with Exports to 60 Countries. Buy Top Quality SS 304 Seamless Elbows, SS 304 Welded Elbows Factory. Metline offers Pipe Elbow, SCH10-SCH80S, Seamless elbow 1/2-24 Inch, DN15-DN600, Welded Elbow 4-72 Inch, DN150-DN1800.

EquivalentsHeat TreatmentHeat Resistance
WeldingChemical CompositionMechanical Properties

Manufacturing Standards:

  • ASME: ASME B16.9,ASME B16.28, MSS SP-75
  • EN: EN10253-1, EN10253-2

ASME B16.9: Factory-Made Wrought Buttwelding Fittings
ASME B16.28: Wrought Steel Buttwelding Short Radius Elbows and Returns
MSS SP-75: Specification for High-Test, Wrough, Butt-welding fittings

Production Range for SS 304 Elbows – Seamless Elbow & Welded Elbows

Seamless Elbow1/2″-24″ DN15-DN600
Welded Elbow4″-72″, DN150-DN1800
Wall ThicknessSCH 5, SCH 10, SCH 20, SCH 30, STD, SCH 40, SCH 60, SCH XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS, SCH 5S, SCH 20S, SCH 40S, SCH 80S
Maximum Thickness120mm
Wall Thickness2mm – 120mm
Bending RadiusR=1D – 10D
Product Angle0 – 180 Degree

We are a specialized manufacturer of welded and seamless SS 304 elbows for low or high temperatures, and medium or high pressures. Metline is a largest supplier of ss 304 elbows in India. We are offering excellent products and sincere service, and welcome all our customers.

Contact Us If You are Looking to Buy 304/304L “Elbows”!

Call Us Now +919833604219 or Email Us “[email protected]

An international piping materials supplier, Metline welcomes you to send us your enquiries for stainless steel 304 pipes, elbows, fittings & flanges and allow us to partner in your growth. We can assure you the best quality products, with the most competitive prices in the industry.

All pipes supplied by Metline are tested according to requirements of the appropriate standards. In all cases the tube leaking test is performed, and supplied with Test Certificates at per EN 10204 3.1 or NABL approved lab test reports. We focus on each and every customer with a personal touch, making us one of the top supplier of stainless steel pipes & tubes and a reliable business partner for all industrial buyers.

Description

AISI 304 Elbow Manufacturers (1.4301, S30400)  | (1.4306, 1.4307, S30403), Long Radius, Short Radius Elbow Manufacturers, Bends

Pipe Elbow is very important pipe fitting which is used frequently for changing direction in piping system. The function of a pipe elbow is to change direction or flow in a piping system. Whenever a Pipe Elbow is used, it must specify the type(45 or 90 degree) and radius (short of long) decides the nominal size. Metline is one of the largest and most renowned manufacturing and stockholding company in India, supplying 304 ANSI B16.9 Butt Welded Stainless Steel 90/45/180 Degree Elbow (bend). Given our extensive expertise and knowledge in stainless steel industry we can offer stainless steel 304 elbows, at the most competitive prices in the Industry. Grade 304/304L (UNS S30400/S30403, EN 1.4301/1.4307) is most widely used Austenitic stainless steel. Grade 304L is a low carbon 304, which is a common practice for 304L to be dual certified as 304 and 304L. The low carbon chemistry of 304L combined with an addition of nitrogen enables 304L to meet the mechanical properties of 304. Grade 304L often used to avoid possible sensitization corrosion in welded components.

UNS Designation & International Equivalent for SS 304 Elbows
TypeUNSJISEN/DINEN/BSEN/NFISOGBGOST
304S30400SUS304X5CrNi18-10304S31Z7CN18.09110Cr18Ni908KH18H10
304LS30403SUS304LX2CrNi19-11304S11X2CrNi19-111000Cr19Ni1103KH18H11

Type 304 stainless steel is the most versatile, and one of the most widely used of the 300 Series stainless steels, with excellent forming and welding characteristics.

304/304L/304H Stainless Steel Elbows & Bends Chemical Composition

Chemical Composition %
 CMnSiPSCrNiFe
3040.08 max.2.00 max.1.00 max.0.045 max.0.03 max.18.0 – 20.08.0 – 10.5Balance
304L0.03 max.2.00 max.1.00 max.0.045 max.0.03 max.18.0 – 20.08.0 – 12.0Balance
304H0.04-0.102.00 max.1.00 max.0.045 max.0.03 max.18.0 – 20.08.0 – 12.0Balance

304/304L/304H Stainless Steel Elbows & Bends Mechanical Properties

 304304L304H
Density888
Melting Range,℃1400 ℃1400 ℃1400 ℃
Elongation %404040
Tensile Strength (Mpa)515485515
Yield Strength (Mpa)205170205
Hardness (Brinell)201201201

Heat Resistance of Stainless Steel 304/304L Elbows & Bends

Good oxidation resistance in intermittent service to 870°C and in continuous service to 925°C. Continuous use of 304 in the 425-860°C range is not recommended if subsequent aqueous corrosion resistance is important. Grade 304L is resistant to carbide precipitation and can be heated into this temperature range.

Heat Treatment of Stainless Steel 304/304L Elbows & Bends

Solution Treatment (Annealing) Heat to 1010-1120°C and cool rapidly. These grades cannot be hardened by thermal treatment.

Welding of SS 304/304L Elbows & Bends

Excellent weldability by all standard fusion methods, both with and without filler metals.
