SS 321 Tubes Suppliers. Top Quality UNS S32100/1.4541 Seamless & Welded Tubes

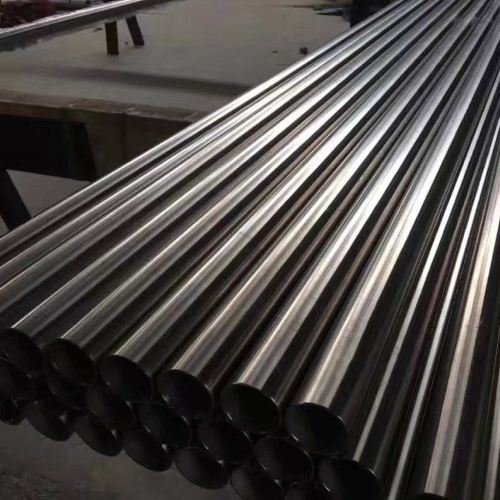

321 Stainless Steel Tubes

305.00

SS 321 Seamless & Welded Tubes Manufacturers & Suppliers, UNS S32100/1.4541 Tubes

  • Equivalents: WRN. 1.4541, UNS S32100 , AISI 321
  • Specification: ASTM A312, ASTM A213, ASTM A268, ASTM A269
  • Size: 6mm to 101.4 mm, Thickness: 0.5mm to 10mm
  • Products: Seamless Tubes, Welded Tubes, ERW Tubes, Electropolished Tubes, Square Tubes, Rectangular Tubes, Thick Wall Tubes, Thin Wall Tubes, Decorative Tubes, Polished Tubes, Round Tubes
  • Stainless Steel 321 Tubes are available in sizes ranging from 1/4 in. OD to 5″ OD in. & lengths of 20 ft.

Metline is a professional stainless steel 321 tube supplier and manufacturer with more than 30 years experience. Our stainless steel 321 tubes are produced in compliance with ASTM A213/A269/A268 standards. SS 321 tubes supplied by Metline have excellent OD tolerance and mechanical properties enabling us to full fill the most demanding requirements from our customers. The quality of our tubes is ensured by our strict manufacturing process and testings at various stages of production.

Specifications:

  • ASTM A 269 Standard for Seamless Welded Stainless Steel Tube – Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service
  • ASTM A312 – Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes
  • ASTM A268 – Standard Specification for Seamless and Welded Ferritic and Martensitic Stainless Steel Tubing for General Service
  • ASTM A213 – Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes

SS 321 Seamless Tubes, SS 321 Welded Tubes, SS 321 Tubes Manufacturers, SS 321 Welded Tubes Wholesalers, SS 321 Seamless Tubes Suppliers in Mumbai, SS 321 Seamless Tubes Importers

Description

Manufacturers & Suppliers of Stainless Steel 321 Tubes, UNS S32100/1.44541 Seamless & Welded Tubes

Metline is a specialist manufacturer and supplier of 321 stainless steel tubes with Bright Annealing (BA Tube) or Polishing (Surface Roughness Ra 0.18). We produce 321 stainless steel tubes outside diameter 6mm upto 5″, in wall thickness upto 10mm. Metline is a professional producer of both thin wall and thick wall stainless steel tubes, with exports to over 70 countries across the globe. In addition to 321 stainless steel tubes, we can also produce and supply related tube fittings such as ferrule fittings, compression fittings, and couplings and valves.

Pipes are used to transport something, and tubes to construct something; hence, tubes are defined by the outside diameter and wall thickness (for construction stability), and pipes are measured by inside diameter to allow a calculation for transportation viz., speed, volumes, etc.

Stainless Steel 321 Tubes Size and Weight Chart

Stainless Steel Tube Size and Weight
Wall Thickness in mm0.50.60.70.811.21.622.633.23.6
O. D. in mm Weight in kg/m
60.0690.0810.0930.1040.1250.1440.176
100.1190.1410.1630.1840.2250.2640.336
12.70.1530.1820.210.2380.2930.3450.444
140.1690.2010.2330.2640.3250.3840.496
15.870.1920.2290.2660.3010.3720.440.5710.694
190.2310.2760.320.3640.450.5340.6960.851.0661.21.264
250.3060.3660.4250.4840.60.7140.9361.151.4561.651.7441.926
25.40.3110.3720.4320.4920.610.7260.9521.171.4821.681.7761.962
31.80.9181.2081.491.8982.162.2882.538
381.1041.4561.82.3012.6252.7843.096
44.51.2991.7162.1252.7243.1133.3043.681
50.81.9682.443.1333.5853.8084.248
63.52.4763.0753.9594.5384.8245.391
76.12.983.7054.7785.4835.8326.525
101.644.986.4357.3957.8728.82
114.34.4535.5477.1738.2478.789.84
1274.9556.1757.9899.1889.78510.98
152.45.967.4299.6211.0711.79213.231

Production & Stock Range for 321 UNS S32100/1.4541 Seamless & Welded Tubes

ProductStainless Steel 321 Tube
OriginIndia, Japan, Europe, US
FormWelded and Seamless
SpecificationASTM A213, ASTM A268, ASTM A269, ASTM A789, ASTM A790
TypeFluid, Food, Decorative, Structural, Instrumentation
Round Tube (mm)4.76 OD to 203.2 OD
Square (mm)12.7 to 152.6
Rectangular (mm)25.4 x 12.7 to 203.2 x 101.6
Grades
  • Austenitic Stainless Steel: 304/304L/304H(1.4301/1.4306/1.4948); 316/316L(1.4401/1.4404); 316Ti(1.4571); 321(1.4541); 309S (1.4833); 310S(1.4845); 317L(1.4438)321H(1.4878); 347H (1.4550);
  • Duplex Stainless Steel: S32001, S32003, S31500, 2205(1.4462); S32304,(1.4362);S31803,2507 (S32750), S32760(1.4501);S32101(1.4162);
  • Super Austenitic Stainless Steel: 904L, S30432, S31042, 6Mo (S31254, N08367)
  • Nickel Base Alloys: Alloy 20 (UNS N08020), Monel 200 (UNS 02200), Monel 400 (UNS N04400), Incoloy 800 (UNS N08800), Incoloy 800H (UNS N08810), Incoloy 800HT (UNS N08811), Incoloy 825 (UNS N08825), Inconel 600 (UNS N06600), 4J29, 4J36, GH3030, GH3039, C276 (UNS N10276)
  • Martensitic Stainless Steel: 410(1.4006), 410S(1.4000), 420(1.4021)
  • Ferritic Stainless Steel: 405(1.4002), 430(1.4016)
Wall Thickness0.33 to 10.0mm
FittingsTtri-clamp, Butt Welding, Flanges, Compression Fittings, Double Compression, Ferrule Fittings
ProcessingCut-to-length, Polishing, Bright Annealed, 180 Grit, 240 Grit, 400 Grit
Test CertificatesAs per EN 10204 3.1
Other TestsAs per Customer QAP, Hydro Test, Destructive & Non Destructive Tests
PackingBundled Packing, or Wooden Box Packing

About 321 Stainless Steel Tubes

321 is the stabilized version of Stainless Steel 304. The 18/8 blend of chromium and nickel is tempered with titanium to give type 321 protection from intergranular corrosion that can occur after heat treatment. It is protected from temperatures ranging from 800 to 1500° F. The metal displays high strength and resistance to various forms of corrosions, including that from aqueous environments. Type 321 finds application in heavy welding components, along with dynamic environments that are subject to changes.

However, the addition of titanium limits the application of 321 in terms of working. The metal is not recommended for certain welding techniques as it is not consumable. Beyond this, stainless steel 321 has excellent forming characteristics, does not require annealing after being welded, and displays toughness in a range of temperatures. The metal shows strength even when exposed to cryogenic temperatures. Additionally, it is often chosen over Type 304 for its increased resistance to creep and rupture. Both metals may be susceptible to stress corrosion cracking.

Types of 321, UNS S32100, 1.4541 Stainless Steel Seamless & Welded Tubes

SS 321 Seamless TubesUNS S32100 Seamless TubesWNR. 1.4541 Seamless Tubes
SS 321 Welded TubesStainless Steel 321 Round TubesStainless Steel 321 Square Tubes
Stainless Steel 321 Rectangular TubesFabricated 321 Stainless Steel Tubes321 Electropolished Tubes

Equivalents of 321, S32100/1.4541 Stainless Steel Seamless & Welded  Tubes Grade

STANDARDWERKSTOFF NR.UNSJISEN
SS 3211.4541S32100SUS 321X6CrNiTi18-10

Chemical Composition of  321, S32100/1.4541 Stainless Steel Seamless & Welded Tubes

GradeCMnSiPSCrNNiTi
SS 3210.08 max2.0 max1.0 max0.045 max0.030 max17.00 – 19.000.10 max9.00 – 12.005(C+N) – 0.70 max

Mechanical Properties of  321, S32100/1.4541 Stainless Steel Seamless & Welded Tubes

DensityMelting PointTensile StrengthYield Strength (0.2%Offset)Elongation
8.0 g/cm31457 °C (2650 °F)Psi – 75000 , MPa – 515Psi – 30000 , MPa – 20535%

Physical Properties of  321, S32100/ 1.4541 Stainless Steel Seamless & Welded Tubes

GradeDensity (kg/m3)Elastic Modulus (GPa)Mean Coefficient of Thermal Expansion (m/m/0C)Thermal Conductivity (W/m.K)Specific Heat 0-1000C (J/kg.K)Electrical Resistivity (n.m)
0-1000C0-3150C0-5380Cat 1000Cat 5000C
321802719316.617.218.616.122.2500720

Applications of UNS S32100/1.4541 & 321 Stainless Steel Seamless & Welded Tubes

  • Power Generation
  • Petrochemicals
  • Gas Processing
  • Specialty Chemicals
  • Pharmaceuticals
  • Pharmaceutical Equipment
  • Chemical Equipment
  • Sea Water Equipment
  • Heat Exchangers
  • Condensers
  • Pulp and Paper Industry

Additional information

Product

Stainless Steel 321 Tubes, UNS S32100/1.4541 Stainless Steel Seamless & Welded Tubes

Product Size

OD (NB Sizes) 1/2" to 72"
Wall Thickness: SCH 5 to SCH XXS, Custom Thickness

Type

Seamless, Welded, Coiled, Straight Lengths

Material Grades

304, 304L, 316, 316L, 317/L, 321/321H, 310/310S, 347/347H, 904L, 254 SMO, Alloy 20, Duplex & Super Duplex

Quality Assurance

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report

Marking

As per Manufacturing Specification, Heat Number Traceability
