PTFE/Teflon Hose Pipes with Flanges & SS 304 Wire Braid

//PTFE/Teflon Hose with Flange Ends

PTFE/Teflon Hose with Flange Ends

5,500.00

Buy High Quality PTFE Hoses with Flanges at Best Prices!

  • Construction of SS Braided PTFE (Teflon) Hose Pipes with Flanges– Innercore of corrugated or smooth PTFE, externally reinforced with stainless steel wire braid (Single or Double).
  • Temperature: Constant use range from -50° C ~ +210° C, Instant use: -70° C ~ +260° C
  • Chemically Resistant (all common solvents, acids and bases)

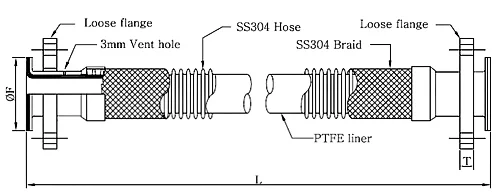

  • End Connection: Floating Lap Joint Flange or Fixed Flange of Stainless Steel or Carbon Steel
  • Application: Chemical Transfer, Steel Processing, Paint Spraying, Fuel and Lubricant Handling, Hydraulic Systems, Plastic Molding Machines, Food Processing, Marine & Transportation Industries

We are a specialist manufacturer of SS 304 Braided Flexible Teflon or PTFE Metal Hose Pipe with Flange ends. Since our inception, Metline has been a renowned name in manufacturing PTFE Hoses with Flanges, also widely known as Teflon Hoses, for  the most demanding applications. Our stainless steel braided PTFE hose with flanges are used by customers in chemical, oil and gas, food processing, and pharmaceutical industries.

Stainless Steel braided PTFE or Teflon hose pipes with flanges are the general purpose product, and can be used in applications involving high temperatures and working pressures. Outside braiding of AISI 304 stainless steel wire is used, to give maximum pressure resistance and external protection to the hose assembly.

Description

Metline is a manufacturer and professional supplier of PTFE (Teflon) Hose with stainless steel or carbon/mild steel flanges as end connections. We can offer PTFE hose with flanges in a variety of configurations such as Smooth Bore or Convoluted Type, with stainless steel 304 or stainless steel 316 wire braiding. SS Braided Teflon Hose Pipes are widely suitable for regular operation between -70℃- to 200℃, as they exhibit high resistance to strong acid and alkali.

We can offer the following categories of high quality teflon hoses at the most competitive prices in the industry:

  • Smooth Bore PTFE Hose with Flanged End Connections – Available in Sizes upto 1″
  • Convoluted PTFE Hose with Flanged End Connections – Available in Sizes upto 8″. Higher Sizes can be made available on request

Fixed Flange or Swivel Type Flange Design & Manufacturing Specifications

Fixed Flange or Swivel/Loose Flanges
British Standard : Table D, E, F, H,    Pressure Rated Flanges : PN10 PN16, PN25, DIN, ISO
ANSI / ASME Standard : ANSI B16.5 ASA 150#, ASA 300#, ASA 600#,   JIS Flange Standard : 5k, 10k
Threaded Flanges, Butt Weld Flanges, Custom Made Flanges, Slip On, Welded & Others available
Custom flanges as per Customer Specifications – Fixed Flanges or Loose Flanges.
MOC of Flanges – Materials
Stainless Steel 304/304L Flanges, Stainless Steel 316/316L Flanges, Mild Steel/Carbon Steel Flanges

Pressure Rating for Smooth Bore PTFE Hose Pipes, with Stainless Steel 304/316 Wire Braid and Flange End Connections

  • Stainless Steel PTFE Hose SAE 100 R14
  • Temperature : -54Deg. C to + 260 Deg. C
Hose I.D. Hose O.D. Working Pressure Min. Burst Pressure Min. Bend Radius
(Inch) (MM) (Inch) (MM) (PSI) (BAR) (PSI) (BAR) (MM) (Inch)
¼” 6.4 0.35 8.8 2610 180 10440 720 75 3
5/16” 8 0.43 11 2540 175 10160 700 100 4
3/8” 9.5 0.48 12.1 2390 165 9560 660 125 5
½” 12.7 0.64 16.2 1740 120 6960 480 165 6.6
5/8” 16 0.74 18.8 1270 88 5080 352 200 8
¾” 19 0.91 23.1 1010 70 4040 280 230 9.2
1” 25.4 1.15 29.2 870 60 3480 240 300 12

Pressure Rating for Corrugated or Convoluted PTFE Hose Pipes, with Stainless Steel 304/316 Wire Braid and Flange End Connections

HOSE SIZE External Dia MAX. Working Pressure Minimum Burst Pressure Minimum Bend Radius
I.D. MAX. MM @ 20°C KG/CM2 @ 20°C KG/CM2 RADIUS MM
Inch mm
1/4 6 13.46 140 550 18
3/8 10 16 120 480 20
1/2 13 19 110 420 25
5/8 16 23 80 310 50
3/4 20 27.5 69 256 65
1 25 34.5 64 240 89
1.1/4 32 39.4 60 212 150
1.1/2 38 45.9 53 190 200
2 50 59.4 37 140 250
2.1/2 63.5 78 24 96 300
3 76.2 93.4 17 69 375
4 101.5 123.2 10 41 600
