|Stainless Steel||Tradename||UNS no.||Werkstoff No.||Density (g/cm3)|
|Alloy 20||Incoloy Alloy 20, Carpenter 20||N08020||2.4660||8.083|
METLINE Industries is a leading manufacturer and exporter of high nickel based special alloy buttweld pipe fittings and flanges. Stainless steel Alloy 20 pipe fittings are available in the size range of ½” NB to 8” NB. For sizes above 8”NB, we offer our customers with seam welded 100% radiography tested Alloy 20 pipe fittings. METLINE offers a complete range of Alloy 20 pipe fittings such as Alloy 20 reducer, Alloy 20 elbow, Alloy 20 tee, Alloy 20 cross, Alloy 20 stub ends and Alloy 20 pipe bends.
We specialise in the manufacture and supply of Alloy 20 pipe bends in both standard and non standard sizes, with bending radius of 1D to 10D.
Alloy 20, also commonly referred as UNS NO8020, is a high alloy special stainless steel grade with excellent resistance to sulfuric acid and chloride stress corrosion cracking. The alloy contains nickel, chromium, molybdenum and copper contents which together help in providing excellent general corrosion resistance. Because of good resistance to corrosion, crevice corrosion, and pitting, this stainless steel alloy is widely used for manufacturing tanks, heat exchangers, process piping and pickling equipment.
Alloy 20 pipe fittings, Alloy 20 flanges and other Alloy 20 grade products are used in various applications throughout the chemical process industry, pharmaceuticals, synthetic rubber, plastics, industrial heating equipment, pulp and paper manufacturing.

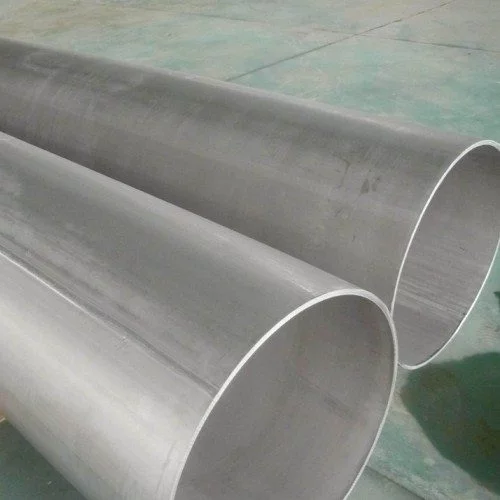

METLINE also stocks and supplies a complete range of stainless steel Alloy 20 pipes to complement our existing production range of buttweld fittings and flanges. Alloy 20 pipes can be supplied in cut to length sizes and also machined or fabricated to meet your piping requirements.
|Specification||ASTM B366, ASTM SB 366, ASTM B564, ASME SB564|
|Grade||Alloy 20, UNS N08020, 2.4660, Incoloy Alloy 20, Carpenter 20|
|Type||Seamless / Welded / Fabricated|
|Bending Radius||R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom|
|Range||½”NB to 24”NB in Sch 10s, 40s, 80s, 160s, XXS.|
|Dimensions||ANSI/ASME B16.9, B16.28, MSS-SP-43.|
Seamless/ Welded 100% Radiography Tested
|Alloy 20 Elbows – Long Radius||Alloy 20 Stub Ends||Sizes 1/2″ – 24″|
|Alloy 20 Elbows – Short Radius||Alloy 20 Crosses|
|Alloy 20 Reducing Elbows||Alloy 20 Reducing Crosses|
|Alloy 20 45° Elbows||Alloy 20 180° LR Return Bends|
|Alloy 20 Tees||Alloy 20 180° SR Return Bends|
|Alloy 20 Reducing Tees||Alloy 20 Pipe Bends / Piggable Bends|
|Alloy 20 Reducers||Alloy 20 Couplings|
|Alloy 20 Concentric Reducers||Alloy 20 Pipe Nipples|
|Alloy 20 Eccentric Reducers||Alloy 20 Forged/Plate Cut Rings|
|Alloy 20 3D Elbow||Alloy 20 End Caps|
|Alloy 20 5D Elbow||Alloy 20 Forged / Plate Circles|
Threaded and Socket Weld Pipe Fittings
|Alloy 20 90° Elbows||Alloy 20 Couplings||
Sizes 1/8″ – 4″
Pressure Ratings –
|Alloy 20 45° Elbows||Alloy 20 Reducers|
|Alloy 20 Street Elbows||Alloy 20 Inserts|
|Alloy 20 Tees||Alloy 20 Caps|
|Alloy 20 Crosses||Alloy 20 Unions|
Forged and Plate Flanges
|UNS Grade||UNS N08020|
|Standard||ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.|
|Size||½” to 36″|
|Dimensions||ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.|
|Class / Pressure||150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.|
|Alloy 20 Slip-On Flanges||Alloy 20 Threaded Flanges||1/2″ – 36″
Raised Face or Flat Face
|Alloy 20 Weld Neck Flanges||Alloy 20 Socket Weld Flanges|
|Alloy 20 Blind Flanges||Alloy 20 Reducing Flanges|
|Alloy 20 Lap Joint Flanges||Alloy 20 Plate Flanges|
Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All fittings and flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.
At METLINE, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.
Test Certificates: Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report
