|Stainless Steel||Tradename||UNS no.||Werkstoff No.||Density (g/cm3)|
METLINE Industries is a leading manufacturer and exporter of stainless steel 304 grade buttweld pipe fittings and flanges. METLINE offers a complete range of stainless steel 304/304L pipe fittings such as SS 304 reducer, SS 304 elbow, SS 304 tee, SS 304 cross, SS 304 stub ends and SS 304 pipe bends. Stainless steel 304 and 304L pipe fittings are manufactured in compliance with ASTM A-403 and ANSI B16.9 / 16.28/ MSS SP-43 / Welding Bevel Standards ANSI B 16.25.

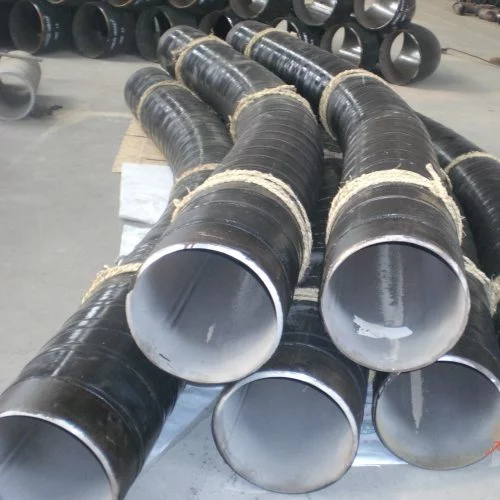

We specialise in the manufacture and supply of SS 304 pipe bends in both standard and non standard sizes, with bending radius of 1D to 10D or any other custom bending radius. We offer ex-stock delivery of various standard size and type 304 pipe fittings, 304 flanges and 304 pipe bends. Our specialty is to manufacture and supply large size fabricated 100% radiography tested 304 elbows, 304 reducers, and 304 tees.
Grade 304 is most commonly referred as the standard “18/8” stainless steel and is one of the most widely used stainless steel grade across the globe. 304H stainless steel offers higher strength compared to common grade 304, as it contains higher carbon content. The key benefits which 304H offers include higher heat resistant properties, tensile strength and creep strength.

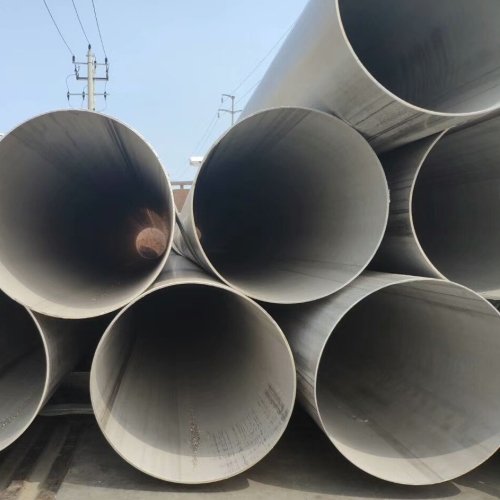

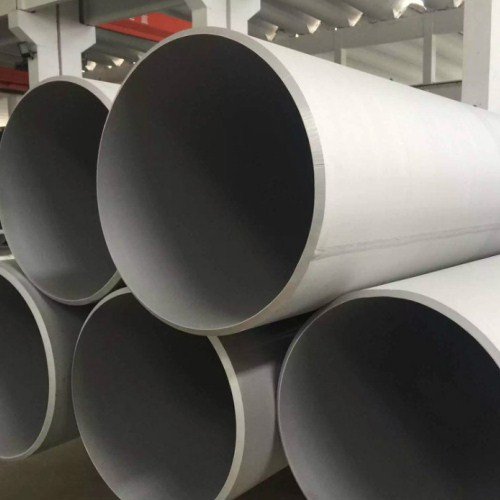

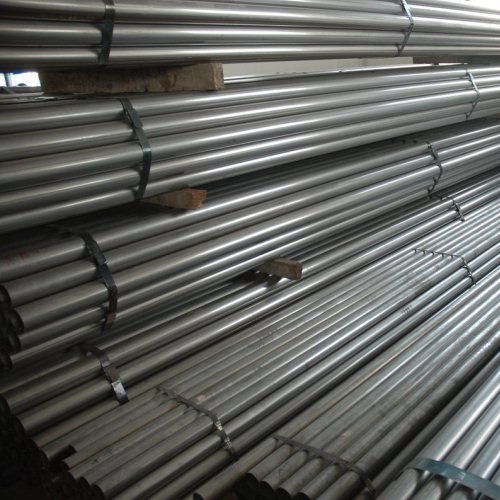

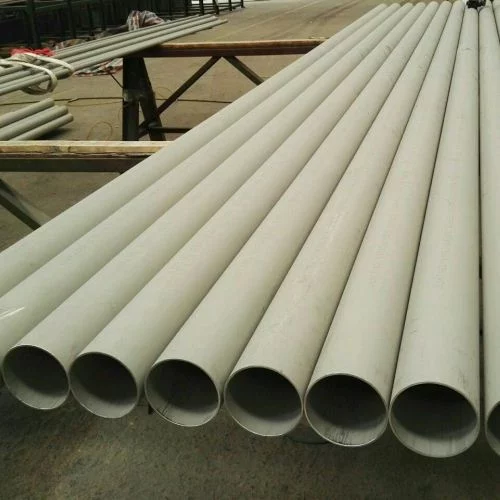

METLINE also stocks and supplies a complete range of SS 304 | 304L pipes to complement our existing production range of 304 buttweld fittings and flanges. Stainless steel 304 pipes can be supplied in cut to length sizes and also machined or fabricated to meet your piping requirements.
|Specification||ASTM A182 / A403 & ASME SA182 / SA403|
|Type||Seamless / Welded / Fabricated|
|Variants||304, 304L, 304H, 304LN|
|Bending Radius||R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom|
|Range||½”NB to 48”NB in Sch 10s, 40s, 80s, 160s, XXS.|
|Dimensions||ANSI/ASME B16.9, B16.28, MSS-SP-43.|
|SS 304 Elbows – Long Radius||SS 304 Stub Ends||
Sizes 1/2″ – 48″
|SS 304Elbows – Short Radius||SS 304 Crosses|
|SS 304 Reducing Elbows||SS 304 Reducing Crosses|
|SS 304 45° Elbows||SS 304 180° LR Return Bends|
|SS 304 Tees||SS 304 180° SR Return Bends|
|SS 304 Fabricated Tees||SS 304 Pipe Bends / Piggable Bends|
|SS 304 Reducers||SS 304 Couplings|
|SS 304 Concentric Reducers||SS 304 Pipe Nipples|
|SS 304 Eccentric Reducers||SS 304 Forged/Plate Cut Rings|
|SS 304 3D Elbow||SS 304 End Caps|
|SS 304 5D Elbow||SS 304 Forged / Plate Circles|
|SS 304 90° Elbows||SS 304 Couplings||
Sizes 1/8″ – 4″
|SS 304 45° Elbows||SS 304 Reducers|
|SS 304 Street Elbows||SS 304 Inserts|
|SS 304 Tees||SS 304 Caps|
|SS 304 Crosses||SS 304 Unions|
|Specification||ASTM A182 / A240 & ASME SA182 / SA240|
|Grade||304, 304L, 304H, 304LN|
|Standard||ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.|
|Size||1/8” to 36″|
|Dimensions||ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.|
|Class / Pressure||150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.|
|SS 304 Slip-On Flanges||SS 304 Threaded Flanges||
1/8″ – 36″
Raised Face or Flat Face
|SS 304 Weld Neck Flanges||SS 304 Socket Weld Flanges|
|SS 304 Blind Flanges||SS 304 Reducing Flanges|
|SS 304 Lap Joint Flanges||SS 304 Plate Flanges|
Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All fittings and flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.
At METLINE, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.
Test Certificates: Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report
